Diphenyl Ether Fiberglass Cloth Laminated Board

Diphenyl Ether Fiberglass Cloth Laminated Board is a high-performance insulation material, combining excellent heat resistance, electrical insulation, and mechanical strength for motors, transformers, and high-voltage equipment.

Description of Diphenyl Ether Fiberglass Cloth Laminated Board Product Description:

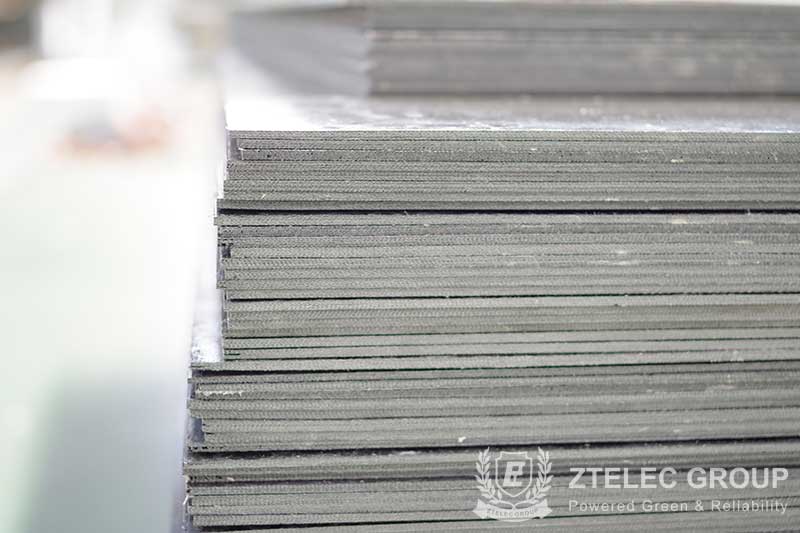

Diphenyl ether fiberglass cloth laminated board, short for diphenyl ether board, is made of alkali free fiberglass cloth for electrical purposes impregnated with diphenyl ether resin after baking and hot pressing with higher dielectric property and mechanical property, great machinability, excellent radiation resistance, corrosion resistance and self extinguishing. The insulation class is H class.

Application of Diphenyl Ether Fiberglass Cloth Laminated Board

 Suitable for insulating structural spares in motors and electrical equipments.

 Advantage of Diphenyl Ether Fiberglass Cloth Laminated Board

►Diphenyl ether fiberglass cloth laminated board, produced by ZTelec Group using diphenyl ether resin or phenol modified diphenyl ether resin as raw materials, can be mass produced with full automatic production equipments.

►This product has the advantages of uniform appearance and color, small thickness tolerance and reliable quality.

►The mechanical and electrical properties of products are superior to the similar one of other companies.

►Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.

Property Parameter of Diphenyl Ether Fiberglass Cloth Laminated Board (Refer to 350-DPOGC301)

Executive Standard: GB-T 1303-2009 – IEC60893-2004

Number Item Unit Value
1 Density g/cm3 1.8-1.95
2 Water Absorption(Thickness:1-20mm) mg 64-200
3 Flexural Strength at Perpendicular Lamination MPa ≥300
(Under Normal)
4 Impact Strength at Parallel Lamination KJ/m2 ≥42
(Simple Supported Beam)
5 Dielectric Strength at Perpendicular Lamination(Transformer Oil at 90℃)(Thickness:1mm) KV/mm ≥8.0
6 Breakdown Voltage at Parallel Lamination KV ≥35
(Transformer Oil at 90℃)
7 Dielectric Constant(50Hz) ≤5.5
8 Dielectric Loss Factor(50Hz) ≤0.05
9 Insulation Resistance after Immersion Ω ≥5.0×1010
10 Flammability HB40
11 Thermal Index 180
