AMA Insulation Paper Product Description: Insulation class: F class (155 C) Color: white Width: 10-980mm Thickness:0.15-0.5mm Can be customized Product Description AMA insulation material is a kind of soft composite material, which is a thr
Insulation class: F class (155 °C)
Color: white
Width: 10-980mm
Thickness:0.15-0.5mm
Can be customized
Product Description

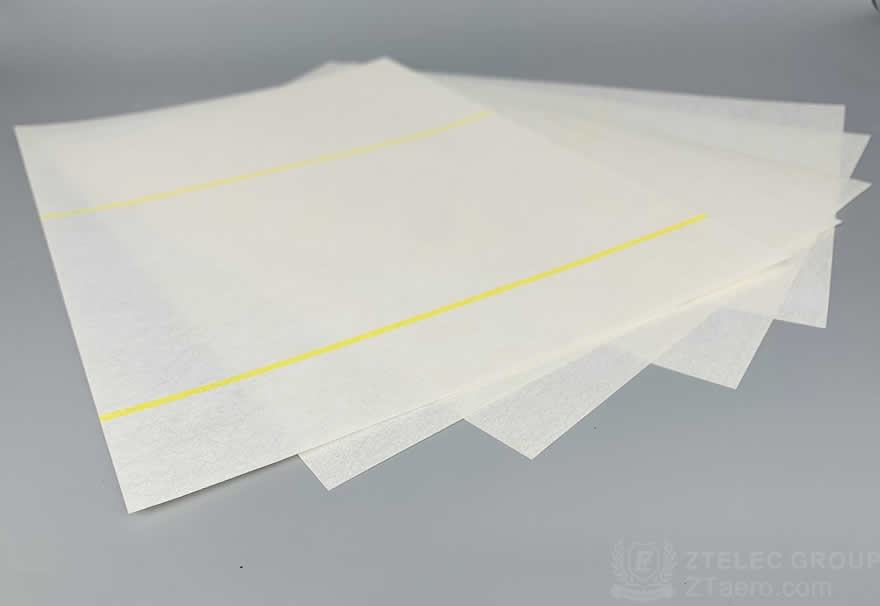

AMA insulation material is a kind of soft composite material, which is a three-layer insulating paper made of polyester film coated with adhesive and bonded with two-sided aramid paper. Use F-grade glue, which combines the excellent high temperature resistance of aramid paper, good mechanical toughness and good dielectric strength of polyester film
The AMA insulation paper has excellent heat-resistant, electrical, and mechanical properties. The performance is totally according with the standard of NMN(GB/T5591.3-2008), The price is cheaper than NMN insulation paper. It’s perfect substitute of NMN.
Application Areas

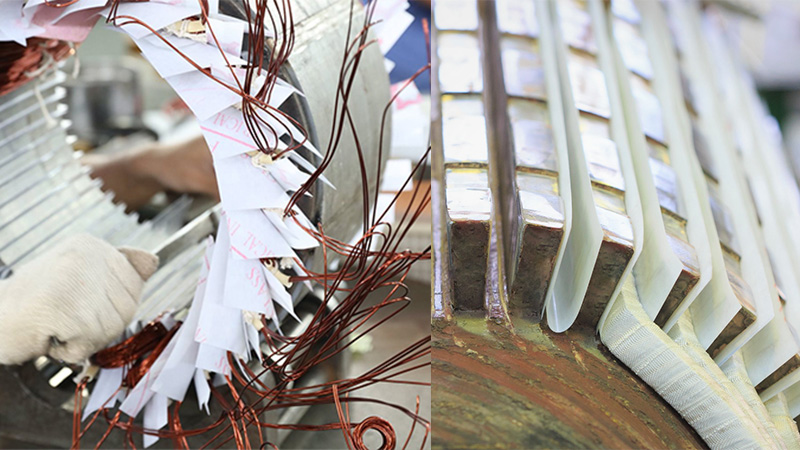

With high Anti-overload ability, this material is suitable for all occasions that require sheet-type electrical insulation materials. It can be used for interturn insulation, layer insulation, and end insulation in various transformers, as well as slot insulation, interturn insulation, phase insulation, and gasket insulation in various motors and generators. In addition, it also finds wide applications in the fields of batteries, circuit boards, switches, and other electronic appliances.

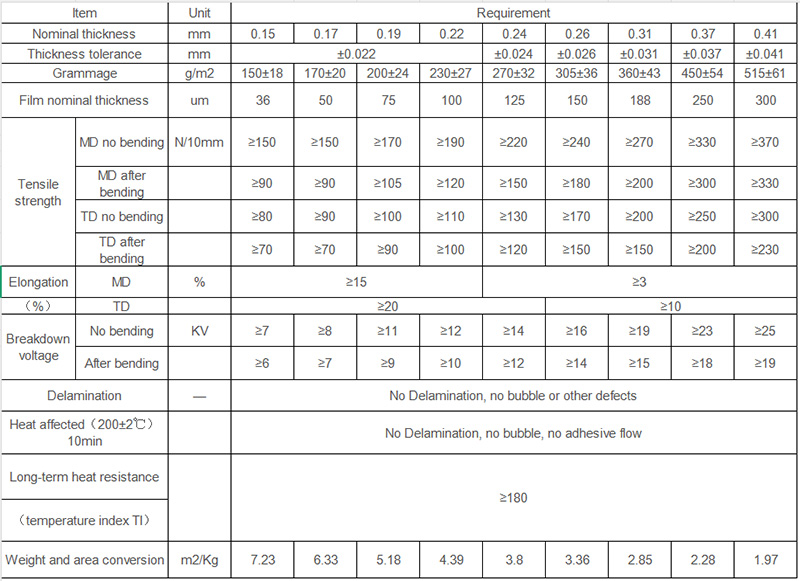

Technical Parameters
Storage advice
1. Store in a dry and clean room at room temperature.
2. Do not approach the source of fire, heating and direct sunlight.
3. The storage period is generally 12 months. If the storage period exceeds, it can still be used after passing the inspection according to the technical standards.
AMA Insulation Paper FAQ：
Q: Are you trading company or manufacturer ?
A: We are a manufacturer, We have more than 65 years experience in producing insulation materials.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xuchang,Henan provience ,China.
Q: What Certifications do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The insulation system has been approved by UL;
The products have passed ROHS test.
Q: Can I get samples for free?
A: Of course, we can sent you for free samples, you just need to pay shipping.
Q: How long is the delivery time?
A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
