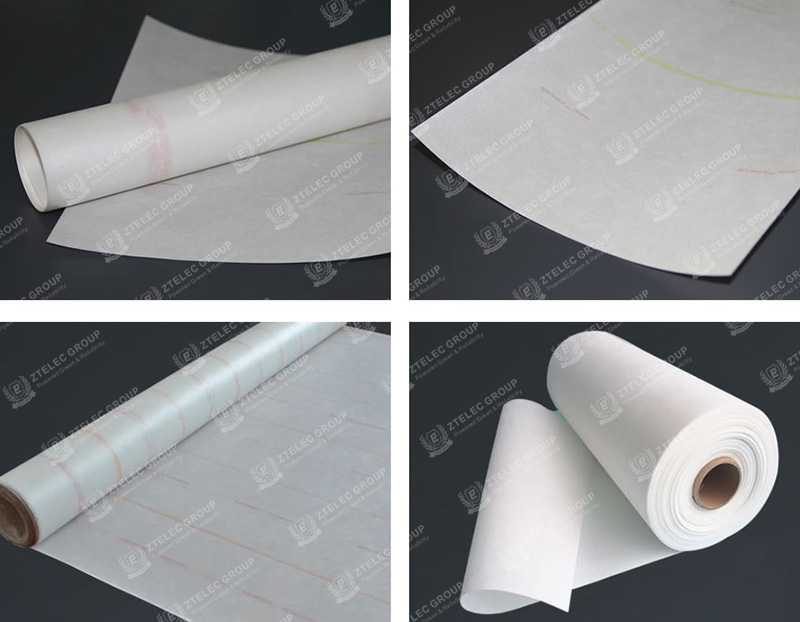

NMN 6640 NOMEX mylar paper is three- layer composite material with NOMEX paper adhered to both sides of polyester film.It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by
Product Parameters：
Type: Insulation composite material, Insulation Materials
Material: NOMEX paper
Thickness:0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm)
Width: 980(mm)
Application: High Voltage
NMN 6640 NOMEX mylar paper product description:
NMN 6640 NOMEX mylar paper is three- layer composite material with NOMEX paper adhered to both sides of polyester film.It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film.
The product is used as insulation material for F/H class electrical machines.
NNM-Nomex-insulation-paper
NMN 6640 NOMEX mylar paper Material properties:
Type: Insulation composite material, Insulation Materials
Material: Nomex paper +Polyester Film+Nomex paper
Application: High Voltage
Thickness:0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm)
Width: 980(mm)

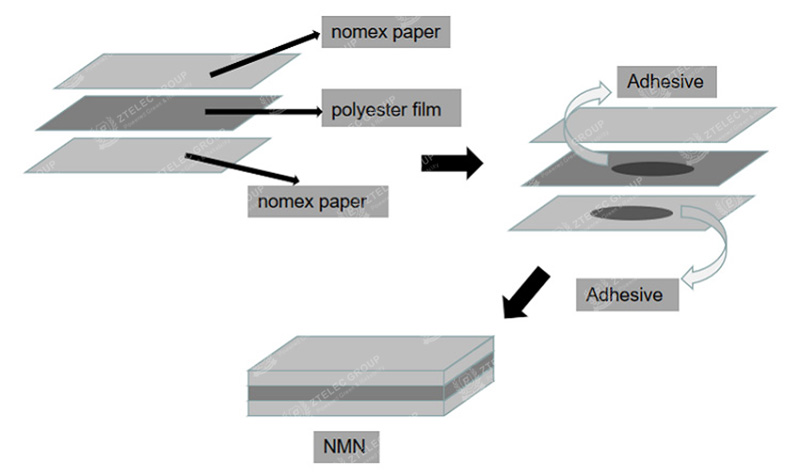

NMN-composition
Nomex layer: high temperature resistance, flame retardant, high mechanical strength.
Polyester film layer: excellent electrical insulation performance and chemical resistance.
Thickness: Common thickness is 0.15mm to 0.35mm.
Heat resistance grade: F/H Class(155/180°C).
Electrical insulation performance: excellent, suitable for high frequency and high voltage environment.
Mechanical properties: good flexibility and strong tear resistance.
Flame retardant: Nomex layer provides good flame retardant properties.
