Motor slot wedges play a critical role in ensuring the mechanical stability and electrical insulation of stator windings in electric motors and generators. As a key insulation component, the slot wedge helps secure coils firmly inside the stator slots while maintaining excellent dielectric performance under thermal and mechanical stress.
With the increasing demand for high-efficiency motors, the requirements for slot wedge materials, dimensional precision, and thermal resistance have become more stringent.

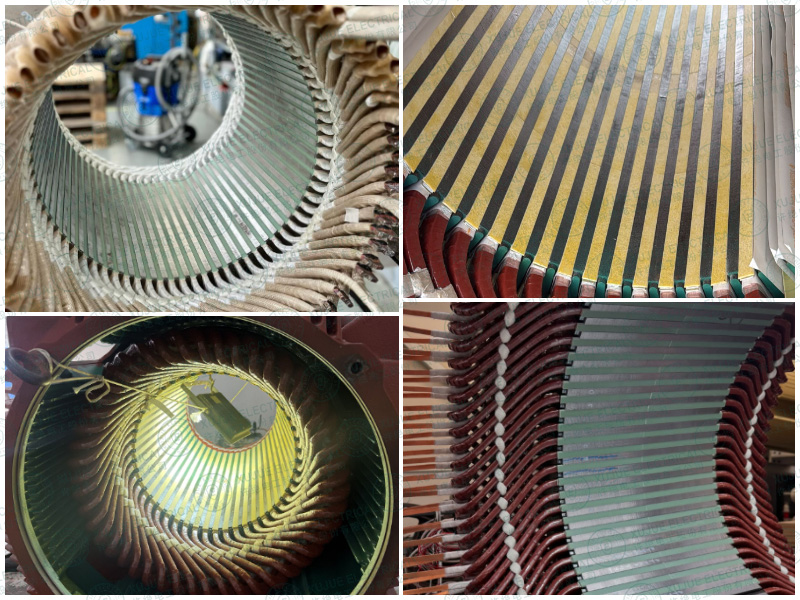

A motor slot wedge is an insulating component inserted into the stator slot opening to lock the winding coils in place. It prevents movement caused by electromagnetic forces, vibration, and thermal expansion during motor operation.
High-quality electrical motor slot wedges must provide:
• Strong mechanical strength to withstand slot pressure
• Reliable electrical insulation performance
• High dimensional accuracy with tight tolerances
• Long-term thermal stability
Modern insulation slot wedges are manufactured using a wide range of advanced insulating materials, depending on the application and thermal requirements.

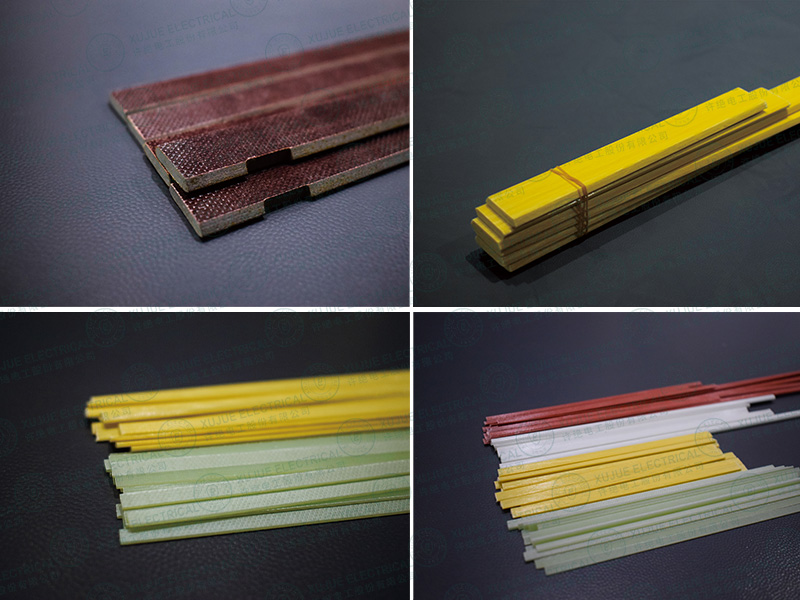

Epoxy Glass (G10/G11) Slot Wedges
Epoxy-based laminates are widely used due to their excellent mechanical strength and electrical insulation properties. They are suitable for Class B and Class F applications.
Pultruded Composite Slot Wedges
Pultruded slot wedges offer consistent cross-sections and superior mechanical performance. These are ideal for high-volume production and applications requiring tight tolerances.
Polyimide Slot Wedges
Polyimide materials are designed for high-temperature environments and are commonly used in Class H and Class C motors. They provide exceptional thermal stability and dielectric strength.
Bismaleimide and Diphenyl Ether Materials
These advanced materials are used in demanding applications such as aerospace motors, traction motors, and high-voltage generators, where extreme heat resistance and long service life are required.
Thermal Classes of Slot Wedges
Motor slot wedges are available in different thermal classes to match motor insulation systems:
• Class B (130°C) – standard industrial motors
• Class F (155°C) – improved thermal performance
• Class H (180°C) – high-temperature motors
• Class C (>180°C) – extreme operating conditions
Selecting the correct thermal class ensures long-term reliability and prevents insulation failure.
Key Performance Advantages
High-performance motor slot wedges offer several critical benefits:
• High mechanical strength to resist deformation
• Excellent dielectric properties for electrical insulation
• Tight dimensional tolerance for precise slot fitting
• Wide product range to meet different motor designs
• Custom manufacturing for specific applications
These advantages make them essential for modern electric motor manufacturing.
Applications of Motor Slot Wedges
Motor slot wedges are widely used in:
• Industrial electric motors
• High-voltage motors
• Generator stators
• Traction motors (railway & EV systems)
• Turbine generators
As motor designs evolve toward higher efficiency and power density, the importance of reliable slot wedge insulation continues to grow.
Custom Motor Slot Wedge Manufacturing
A professional motor slot wedge manufacturer can provide customized solutions based on:
• Slot dimensions and profiles
• Material selection (epoxy, polyimide, pultruded composites)
• Thermal class requirements (B, F, H, C)
• Machining precision and tolerances
Custom slot wedges ensure optimal fit, improved assembly efficiency, and enhanced motor performance.
Choosing the right motor slot wedge is essential for ensuring the reliability, efficiency, and lifespan of electric motors. From epoxy and pultruded materials to high-performance polyimide and bismaleimide systems, modern slot wedges are engineered to meet the demanding requirements of today’s electrical industry.
If you are looking for a reliable motor slot wedge supplier offering custom sizes, high precision, and fast delivery, selecting a manufacturer with strong material expertise and processing capability is key to long-term success.
