In modern electrical systems, insulation materials are no longer just about electrical isolation — they play a critical role in thermal management, mechanical stability, and long-term reliability.

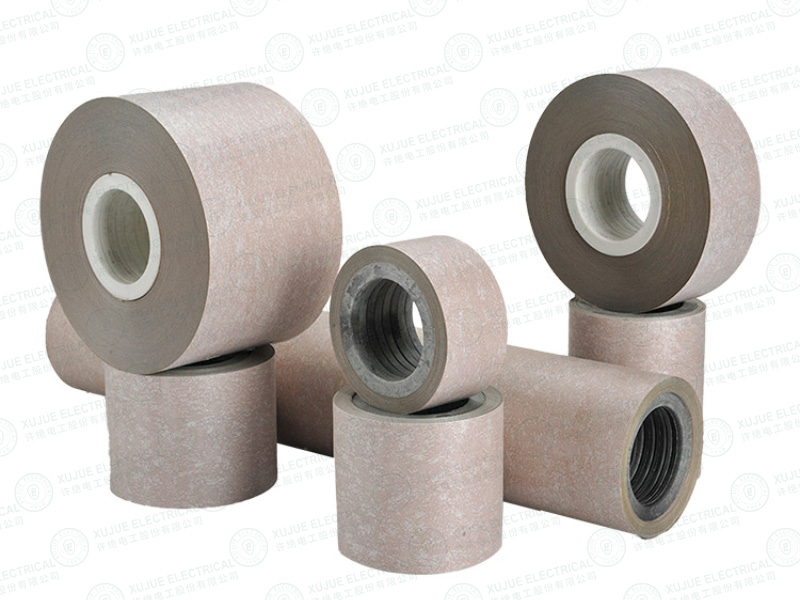

Class H NHN Insulation Paper (180°C) is specifically engineered for high-temperature motor and transformer applications, offering a balanced combination of thermal endurance, dielectric strength, and processing flexibility.

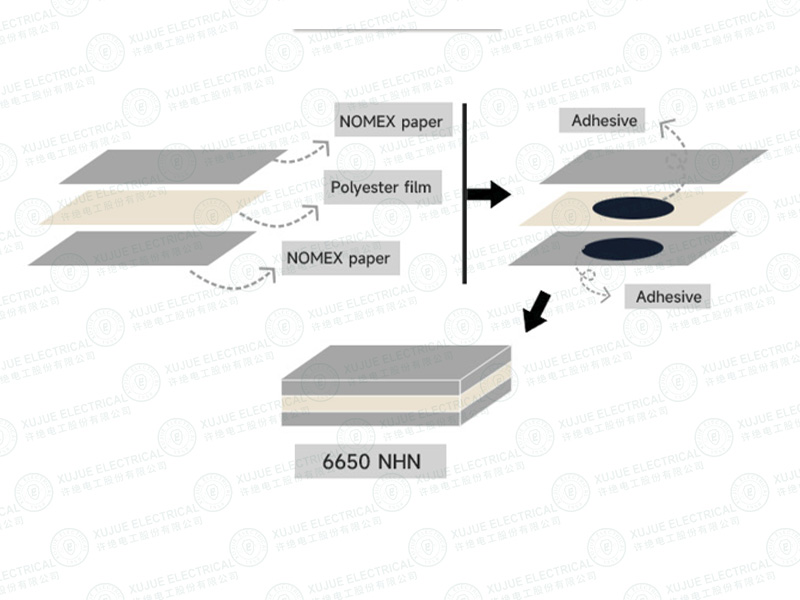

NHN insulation paper is a three-layer composite material made of:
Outer layers: Nomex Paper
Inner layer: PET (Polyester Film)
This structure combines the excellent heat resistance of Nomex with the mechanical strength and dielectric properties of PET, resulting in a high-performance insulation laminate.
Key Features of Class H NHN (180°C)
High Thermal Resistance
Designed for Class H insulation systems, NHN can withstand continuous operating temperatures up to 180°C, making it ideal for demanding environments.
Dielectric Strength
The PET core provides high electrical insulation performance, ensuring safety and reliability in high-voltage applications.
Strong Mechanical Stability
NHN maintains its structural integrity under mechanical stress, vibration, and thermal aging.
Excellent Processability
• Easy to slit, cut, and die-cut
• Suitable for automated production lines
• Applications in Motor & Transformer Industry
Electric Motors
• Slot insulation
• Phase insulation
• Winding wrapping
• Interlayer insulation
• Coil insulation
• End insulation
Generators & Electrical Equipment
• High-temperature insulation systems
• Structural insulation components
Compared with traditional insulation materials such as DMD or simple polyester films, NHN offers:
• Higher temperature resistance (Class H vs Class B/F)
• Longer service life under thermal stress
• Better compatibility with high-performance electrical systems
For applications requiring long-term reliability at elevated temperatures, NHN is a more advanced and durable solution.
Available Specifications
• Thickness: Customizable (commonly 0.15mm/0.18mm/0.2mm/0.25mm/0.3mm/0.4mm)
• Form: Rolls
• Width: Custom slitting available

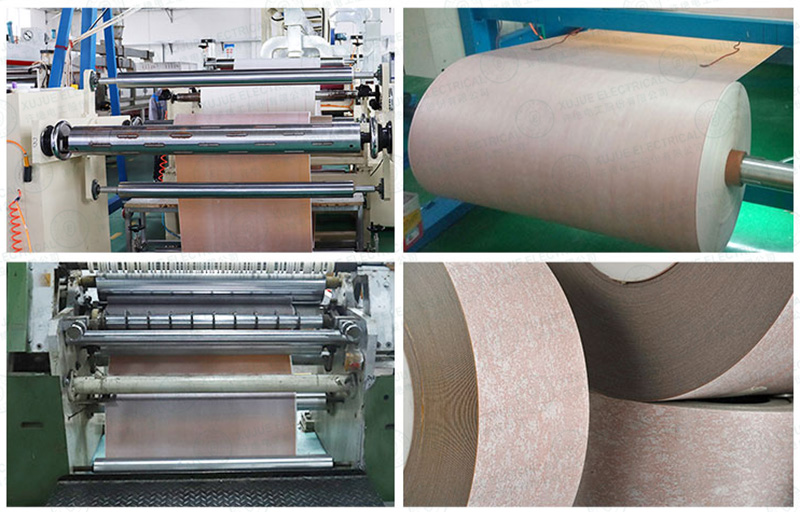

From raw material to finished insulation parts, we deliver complete solutions tailored to your application.
As electrical equipment continues to evolve toward higher efficiency and higher temperature operation, insulation materials must keep pace.
Class H NHN Insulation Paper (180°C) stands out as a reliable, high-performance solution for motors, transformers, and other critical electrical systems.
If you are looking for a stable, high-quality NHN insulation material supplier, feel free to contact us for technical support and customized solutions.
