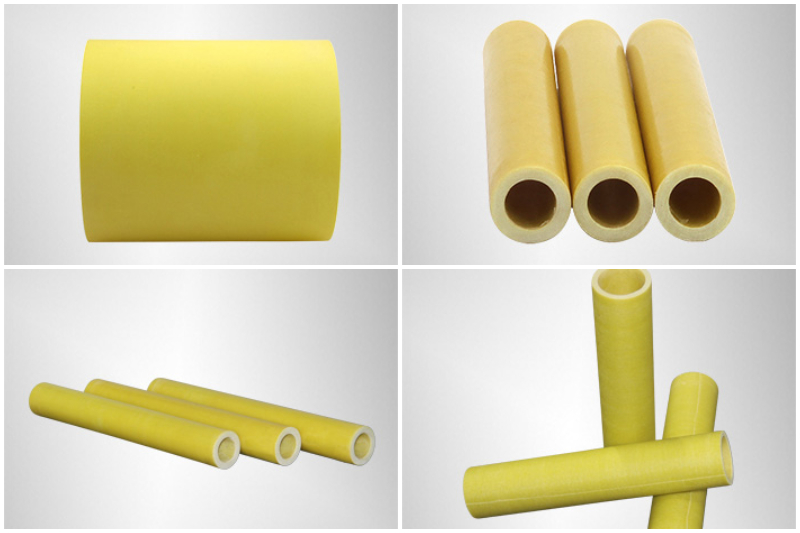

Epoxy tubes, also known as epoxy fiberglass tubes or epoxy resin tubes, are one of the most widely used insulation materials in the electrical and electronics industry. Manufactured by impregnating fiberglass cloth with epoxy resin and curing it under high temperature, epoxy tubes combine excellent dielectric properties, mechanical strength, and thermal stability. These qualities make them a reliable choice for motors, transformers, switchgear, and other high-voltage applications.
Key Properties of Epoxy Tubes
Before examining their applications, it is important to understand the features that make epoxy tubes valuable:
High dielectric strength: Provides excellent insulation under high voltage stress.
Thermal resistance: Performs reliably in environments with elevated operating temperatures.
Mechanical durability: Withstands pressure, vibration, and mechanical load.
Moisture and chemical resistance: Stable even in humid or corrosive environments.
Machinability: Easy to cut, drill, and machine into custom components.
These advantages allow epoxy tubes to serve both as insulating barriers and structural supports in electrical equipment.
1. Slot Insulation and Coil Supports
Epoxy tubes are commonly used as insulating sleeves for copper conductors and coils. They prevent electrical leakage and protect windings against abrasion.
2. Bearing and Shaft Insulation
In large motors, epoxy tubes provide insulation between rotating shafts and bearings, minimizing the risk of current discharge and extending motor lifespan.
3. Spacer and Structural Components
Due to their mechanical stability, epoxy tubes are machined into spacers, supports, and end fittings that can withstand vibration and thermal cycling.
1. Lead and Conductor Insulation
Epoxy tubes act as protective sleeves for transformer leads, ensuring safe separation and preventing electrical breakdown at high voltages.
2. Structural Spacers
In both dry-type and oil-immersed transformers, epoxy tubes are used as rigid spacers to support windings and maintain proper clearances.
3. Oil-Resistant Applications
Epoxy fiberglass tubes retain stability even when immersed in transformer oil, making them a dependable choice for insulation in oil-filled units.
1. Busbar Insulation
Epoxy tubes are applied as busbar sleeves to provide reliable electrical insulation and reduce the risk of arc flash in high-voltage switchgear.
2. Arc and Flashover Protection
Their dielectric strength makes them ideal as barriers and shields, reducing the likelihood of partial discharge or flashover events.
3. Custom Machined Parts
Because epoxy tubes are easy to machine, they are fabricated into custom connectors, supports, and covers for high-voltage assemblies.
► Safety and reliability: Superior dielectric performance ensures protection against breakdowns.
► Versatility: Suitable for motors, transformers, switchgear, and many other electrical systems.
► Cost-effective: Offers long service life and reduces maintenance costs.
► Global adoption: Trusted by manufacturers and utilities worldwide for power distribution and industrial applications.
Epoxy tubes are a critical component in modern electrical engineering, serving as both insulation and structural support in motors, transformers, and high-voltage equipment. With their proven mechanical strength, thermal endurance, and electrical reliability, epoxy fiberglass tubes remain one of the most effective solutions for ensuring safety and stability in power systems.
For engineers, manufacturers, and operators seeking dependable insulating materials, epoxy tubes provide a cost-effective and long-lasting answer to the challenges of electrical insulation.
